The New House – Episode 4 – A Good Foundation is Important in Life

To start with, these series of foundation shots were taken over a period of 4 working days. These guys were good. Holy cow .. it would have taken me at least, what, 6 days to build and pour footing forms and build and pour wall forms. In my dreams.

We hired local company Norvel Concrete to do our foundation. The son, Payton does all the work with two helpers, while owner/dad stays home relaxing or playing golf. Kind of like Goodnight Construction!

P1010255

Monday – Day 1. Build footer forms. It took a while before they could start because the final excavation wasn’t quite done. Brant had not yet dug that 30” trench (on the left above) for the walkout side of the basement. The trench is to allow those footings to be well below grade and the frost line. He also had some overall cleanup to do to give them room to work.

 P1010257

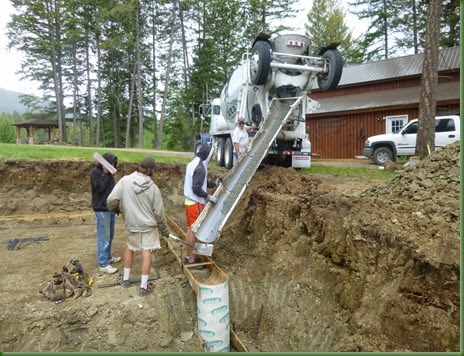

By noon Brant was done with final excavation. By 2,  the forms were built, and by 3 they were poured.

 P1010261

It was a rainy day. The foundation is on a base of clay/gravel, so walking around on it wet is messy.

 P1010263

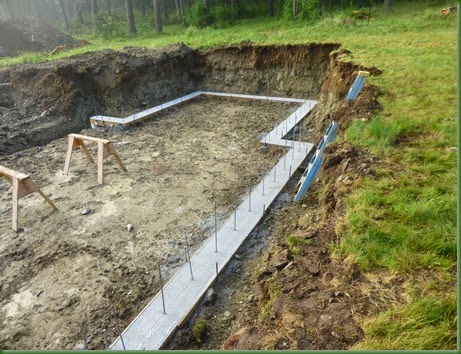

Finished footings with vertical rebar that will go inside the walls.

 P1010265

Day two – Tuesday, footing forms are stripped and work begins on the foundation walls.

P1010267

Since this will be a two-story house, the basement walls are 8” thick. The height will be 8’. They build the wall forms starting with the outside wall, then add the rebar and ties, then add the inside walls.

 P1010272

Day 3 – Thursday - Wednesday was a day off, so the foundation walls were completed on Thursday. This included footing forms for inside load bearing walls.

 P1010273

Friday – Day 4, foundation walls are poured.

 P1010277

One helper used a vibrator to allow the concrete to settle and eliminate air pockets. The other helper does the finish floating and adds the J-bolts for the sill plate. Payton (blue tank top) coordinates the pour and gives hand signals to the concrete truck drive to start/stop and move to work down the walls.

P1010279

By mid afternoon Friday, the walls and interior footings are poured. On Monday or Tuesday, the forms will be stripped off and we can do OUR work to install the radon system and inside pea gravel before the slab is poured.

 P1010278

One of our dilemmas is backfilling around the outside of the foundation. The pile of dirt on the left is mostly topsoil, taken from the 1st two to three feet during the excavation. The huge pile of dirt on the right was below the topsoil is a sand/clay mixture taken from below the topsoil. Sand/clay makes great bricks, but lousy backfill because it does not allow water to drain and it swells when it gets wet (i.e., cracked foundation walls). Now if were going to build a cob house, we’d be in great shape – because this soil is perfect for that!

so 3/4 of the dirt we took out of the hole cannot be put back for backfill. We’ll have to buy a bunch of gravel instead. Where to put that clay soil stuff?

Next post: The slab

Tuesday, May 20, 2014

The New House – Episode 3 – milling logs for lumber



We started with a pile of about 25 logs in the 9-13’ range that came from 3-1/2 trees on the property – one that fell onto the gazebo last winter, two 100’ers that were in front of the new house location, and 1/2 of a tree remaining when the top broke off in a storm.

P1010006

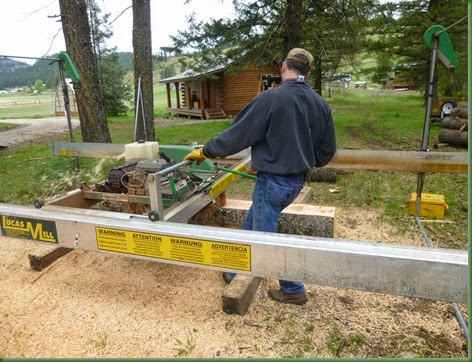

P1000360Planning to use this milled lumber for the new house, we hired Mark who owns a “Lucas Mill” which is a swing arm mill. It has a large blade with an 8” cut depth that can cut in both directions, coming and going. Previously, we have hired guys with band mills – like a huge band saw on it side.

 P1010232

Here is a YouTube video showing how the Lucas Mill works.

Lucas Mill video

Mark brought his two sons with him to help mill and sling the wood around. The kids get a cut of the proceeds too. We pay .25 per board foot for the milling service, which includes “stickering” the finished wood into various piles to air dry. .25/bd ft means an 8’ 2x6 costs me $2. At Lowes Depot that board would be about $4.50. The larger lumber is more expensive at the yards, so I also had him mill 2x8, 2x10, 2x12’s and a pile of beams and post material.

 P1010233

 P1010236

One unique thing he milled for us are a bunch of 4” thick x 12” wide natural edge beams that we’ll use for stair treads on log-style stair cases. We’ll need (28) 3’ wide treads.  You can’t buy those at Home Depot!

P1010238 P1010251

…  a boring 4x12 10’ would cost around $50 each at a store. Mine cost $10... plus they’re cooler.

P1010252

100 Douglas fir 2x6’s stickered (small slats separating the rows) to dry.

Once done, we ended up with 2500+ board feet of good lumber for about $600... a saving over lumber yard costs of over $1500.

General Tools & Instruments LCD Moisture Meter

I bought a new toy …er tool to gauge when the new lumber is ready to use – a moisture meter. Framing with green wood is a gamble. Since the project has launched itself full force, I’ll have to buy quite a bit up front and use the milled stuff down the road.

Next post: foundation

Saturday, May 10, 2014

THE NEW HOUSE – Episode 2 … on broken ground



The new house will sit in an open space near the garage with a great view of the lake. The stakes show the corners of the building. The house really looks small when you lay it out like this – but they are larger when built. Taller too! We received approval for the site plan from the county, so we notified our excavation guy and the foundation folks, that we’re ready to start the project. We’re off to the races!footprint2

In the distance, you can barely see the stumps for the two huge douglas fir trees we took down in front of the house to mill for lumber (next post).

P1010242

On Thursday, Brant Bailey with Hanson Logging brought out his Case 500 backhoe and we broke ground around 10am.

 P1010245

I “helped” a little moving the top soil to a pile separate from the loam. I think it would take 5 of my loads to fill his loader bucket.

 P1010246

The top soil is about 3’ deep then we hit clay/loam which will make a pretty good base for the foundation. not great drainage, but solid.

 P1010249

After two days work we basically have a level pad 48’ wide x 26’ deep, with an area for the walkout.

 P1010250

The house’s basement will be “walkout” style, meaning we’ll have a flat area outside the basement and be able to walk out the basement sliding doors to a patio.

You never know how things are going to look until you do final grading, but we we originally hoping for the flat area outside the basement to remain flat toward the lake… but we don’t have enough grade for that, so we’ll need to have a lowered area surrounded by a rockery. (Similar to brother Dave and Sue’s).

The night Brant finished his second day of excavating, we got a call from the foundation folks (Norvell
Concrete) that they would be available on Monday to start work… yikes!  Brant has about another 1/2 day of work to complete on Monday, but having them both there will really make sure the grading done works well for the foundation footings.



next post: Milling logs to Lumber

The New house – Episode 1 - Design

Front of the house
Back (just starting to plan with rockery)
Main Floor plan
Basement Plan
Upstairs Plan
view from foyer toward kitchen/dining/family
family room
dining area from kitchen
Kyle’s room
Upstairs computer/piano room
Master Bedroom
Master Bath
Basement craft/exercise room
Basement Entertainment room
