A New House – Episode 9 – I Second That! (Storey that is)

We are quickly approaching THE BIG DAY, THE BIG KAHUNA, That life episode of episodes (i.e., son Ben getting married this week!), so the house project is winding down temporarily.

But in the last two weeks we have layed down the 2nd floor joists and subfloor, started building 2nd floor walls and family room gable ends and chimney chase, and finished fine grading around the house.

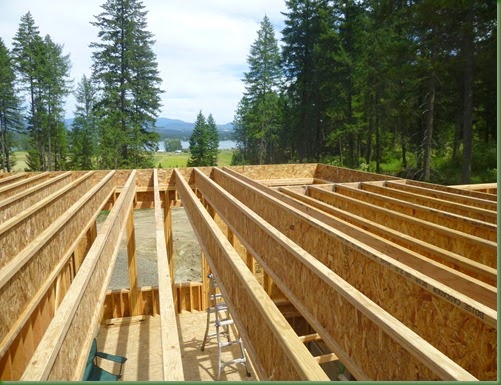

The floor joists supporting the 2nd floor span a full 25’ across the house, so they were a little beefier and wider (14” vs 12”) than the 1st floor that had a bearing wall to help with support. While heavyish, we managed a way to get them up there and trimmed in place – learning trick from the first floor.



I really like these i-joists – light and straight. But don’t assume the factory ends are square (lesson learned)



This an “LVL” beam (laminated veneer lumber) that is needed to create the stairwell opening.



Me. In the house.

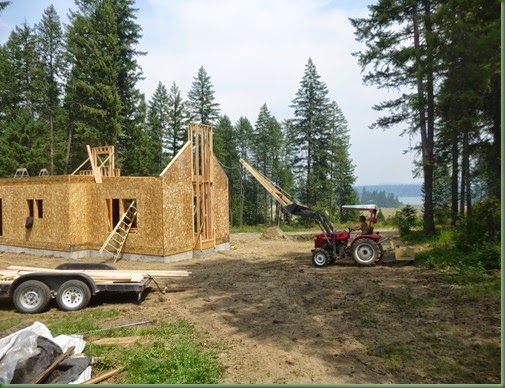

i built a makeshift “boom” for the tractor to help tilt up the 18’ chimney chase. Worked great!  It would helped with those gable ends for the family room.



Deb has become a master with the sheathing nailer. And (unlike me) doesn’t mind the high ladder work.



Deb work for days finishing the grading around the house. She did a superb job.



The outside part of the chase is done, but we still have inside work to do.

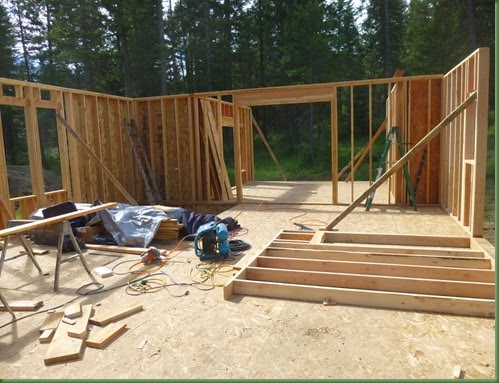

We’ve started walls on the 2nd floor. Those taller walls are the shed dormers. The other side will look the same.

A New House – Episode 8 – More Walls



It has been a while since i last posted our progress. Been rather busy framing walls, grading, and constructing a mini foundation….

Walls continue to go up.  We’re doing 9’ walls in the main floor.

got to have lots of bracing to hold things up!

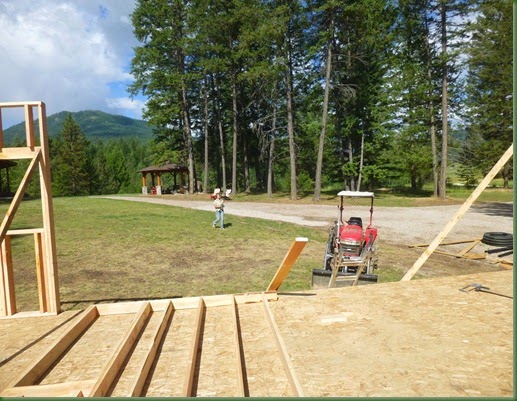

Deb has been the tractor queen this week, doing a great job backfilling and grading around the house   .. and nailing





Exterior walls are framed except the right end which we’ll leave open for now so we can bring lumber and plywood for the second floor.



Since the “wall incident” now all walls are framed in smaller sections

We have our excavation guy back to remove “mount Reed”  - a big pile of high clay dirt. He moved it to the hill and dumped it over the side.



Plywood covering the window openings are cut out afterwards

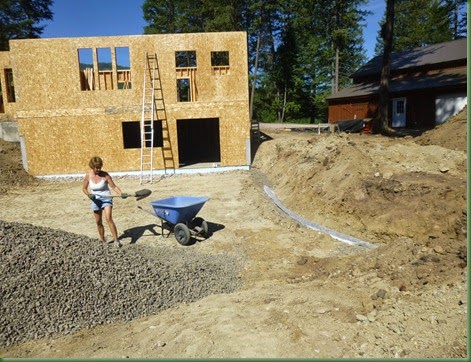

The french drain taking water from around the house .





We’ll have a fireplace in the family room, so we had to build a short wall to support the chimney chase.



Nice lake view from the family room. We’ll have a french door here with windows on each side.

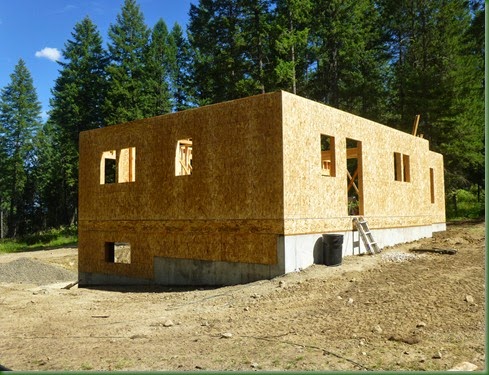

All exterior walls are framed and sheathed (except end wall)

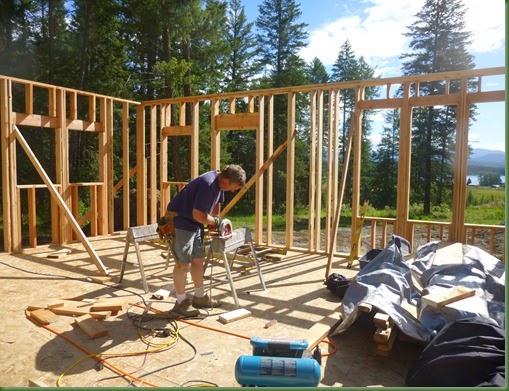

now doing interior walls before starting the second floor joists.
